Mdp::StateSpaceDimension Class Reference

this models a dimension in the state space. More...

#include <stateSpaceDimension.h>

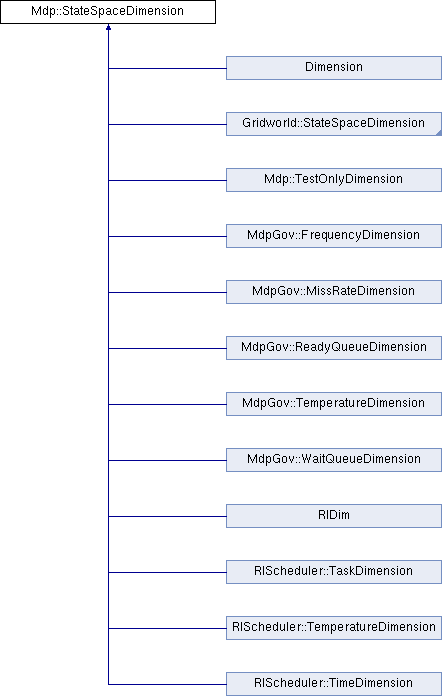

Inheritance diagram for Mdp::StateSpaceDimension:

Public Member Functions
virtual	~StateSpaceDimension ()
virtual std::string	getName ()=0
	returns the name of that dimension More...
virtual statePosition_t	getPosition ()=0
	gets the position of the state along that dimension More...
virtual size_t	getNumberOfPositions ()=0
	returns the number of possible positions along that dimension More...
void	setIndex (int i)
int	getIndex ()

Protected Member Functions
template<typename T >
std::shared_ptr< T >	getModel ()

Protected Attributes
int	index
std::shared_ptr< DomainModel >	domainModel {nullptr}

Detailed Description

this models a dimension in the state space.

This abstract class has to be implemented into actual dimensions by the client of the MDP framework

Definition at line 29 of file stateSpaceDimension.h.

Constructor & Destructor Documentation

virtual Mdp::StateSpaceDimension::~StateSpaceDimension ( )

inlinevirtual

Definition at line 34 of file stateSpaceDimension.h.

Member Function Documentation

int StateSpaceDimension::getIndex

(

)

Definition at line 20 of file stateSpaceDimension.cpp.

template<typename T >

std::shared_ptr<T> Mdp::StateSpaceDimension::getModel ( )

inlineprotected

Definition at line 49 of file stateSpaceDimension.h.

virtual std::string Mdp::StateSpaceDimension::getName ( )

pure virtual

returns the name of that dimension

Implemented in MdpGov::MissRateDimension, Mdp::TestOnlyDimension, MdpGov::TemperatureDimension, MdpGov::FrequencyDimension, MdpGov::WaitQueueDimension, Dimension, MdpGov::ReadyQueueDimension, RlDim, RlScheduler::TaskDimension, RlScheduler::TimeDimension, Gridworld::StateSpaceDimension, and RlScheduler::TemperatureDimension.

virtual size_t Mdp::StateSpaceDimension::getNumberOfPositions ( )

pure virtual

returns the number of possible positions along that dimension

Implemented in MdpGov::MissRateDimension, Mdp::TestOnlyDimension, MdpGov::TemperatureDimension, MdpGov::FrequencyDimension, MdpGov::WaitQueueDimension, Dimension, MdpGov::ReadyQueueDimension, RlScheduler::TaskDimension, RlDim, RlScheduler::TimeDimension, Gridworld::StateSpaceDimension, and RlScheduler::TemperatureDimension.

virtual statePosition_t Mdp::StateSpaceDimension::getPosition ( )

pure virtual

gets the position of the state along that dimension

Returns

a position starting at 0 along that dimension of the (discrete finite) space.

Implemented in MdpGov::MissRateDimension, Mdp::TestOnlyDimension, MdpGov::TemperatureDimension, MdpGov::FrequencyDimension, MdpGov::WaitQueueDimension, Dimension, MdpGov::ReadyQueueDimension, RlScheduler::TaskDimension, RlDim, RlScheduler::TimeDimension, Gridworld::StateSpaceDimension, and RlScheduler::TemperatureDimension.

void StateSpaceDimension::setIndex

(

int

i

)

Definition at line 15 of file stateSpaceDimension.cpp.

Member Data Documentation

std::shared_ptr<DomainModel> Mdp::StateSpaceDimension::domainModel {nullptr}

protected

Definition at line 57 of file stateSpaceDimension.h.

int Mdp::StateSpaceDimension::index

protected

Definition at line 56 of file stateSpaceDimension.h.

---

The documentation for this class was generated from the following files:

• src/mdp/stateSpaceDimension.h
• src/mdp/stateSpaceDimension.cpp
